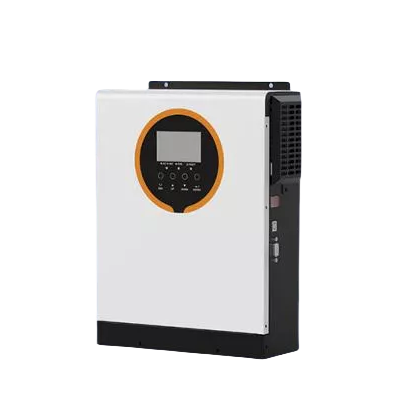

3200W/3000W Off Grid Solar Inverter for Household New

factory wholesale hybrid off grid inverter
Rated power:
Rated Voltage:
Availability:
Quantity:
  • OLU2024VMII

  • OULU

Overview

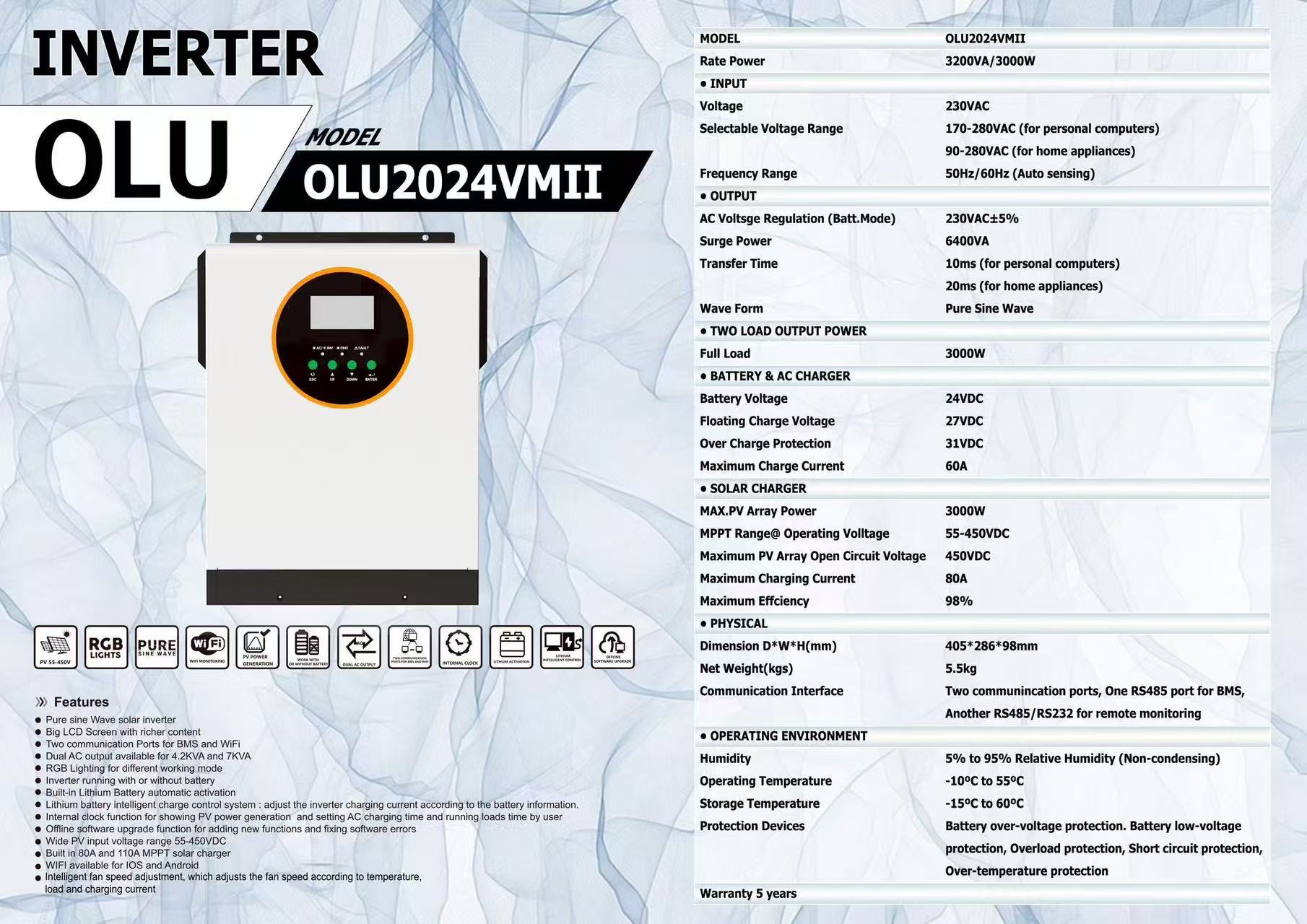

微信图片_20250412010758

Features

● Pure sine Wave solar inverter

●Big LCD Screen with richer content

●Two communication Ports for BMS and WiFi

● Dual AC output available for 4.2KVA and 7KVA

●RGB Lighting for different working mode

● Inverter running with or without battery

●Buit-in Lithium Battery automatic activation

●Lithium battery inteligent charge control system:adjust the inverter charging current according to the battery information.

●Internal clock function for showing PV power generation and setting AC charging time and running loads time by user

●Offline software upgrade function for adding new functions and fixing software errors

●Wide PV input voltage range 55-450VDC

●Built in 80A and 110A MPPT solar charger

●WIFI available for IOS and Android

●Intelligent fan speed adjustment,which adjusts the fan speed according to temperature,load and charging current


Specification Data


MODEL OLU2024VMII
Rate Power 3200VA/3000W
INPUT
Voltage 230VAC
Selectable Voltage Range 170-280VAC(for personal computers)
90-280VAC(for home appliances)
Frequency Range 50Hz/60Hz(Auto sensing)
OUTPUT
AC Voltsge Regulation(Batt.Mode) 230VAC±5%
Surge Power 6400VA
Transfer Time 10ms(for personal computers)
20ms(for home appliances)
Wave Form Pure Sine Wave
TWO LOAD OUTPUT POWER
Full Load 3000W
BATTERY &AC CHARGER
Battery Voltage 24VDC
Floating Charge Voltage 27VDC
Over Charge Protection 31VDC
Maximum Charge Current 60A
SOLAR CHARGER
MAX.PV Array Power 3000W
MPPT Range@Operating Volltage 55-450VDC
Maximum PV Array Open Circuit Voltage 450VDC
Maximum Charging Current 80A
Maximum Effciency 98%
PHYSICAL
Dimension D*W*H(mm) 405*286*98mm
Net Weight(kgs) 5.5kg
Communication Interface Two communincation ports,One RS485 port for BMS,Another RS485/RS232 for remote monitoring
OPERATING ENVIRONMENT
Humidity 5%to 95%Relative Humidity(Non-condensing)
Operating Temperature -10℃ to 55℃
Storage Temperature -15℃ to 60℃
Protection Devices Battery over-voltage protection.Battery low-voltage protection,Overload protection,Short circuit protection Over-temperature protection



图片1def

1. LCD display                 12. RS-232 communication interface

2. Status indication         13. Parallel communication interface (only applicable                                               to parallel models)

3. Charging indication    14. Parallel current sharing interface (only applicable                                               to parallel models)

4. Fault indication           15. Dry node interface

5. Function keys              16. USB communication interface

6. Power on key               11. Circuit breaker

7. Mains input

8. Mains power output

9. Solar energy input


图片eretrgrg1




Once the device is installed and the battery is connected, just press on/off switch (located on the button of the case) to turn on the unit.


Application

Solar panels are sold to more than 100 countries around the world, such as the US, Mexico, Brazil, Argentina, the United Kingdom, France, Germany, Italy, Ukraine, Poland, Spain, Thailand, Vietnam, Japan, Oman, Kuwait, Syria, South Africa, Zambia, Nigeria and other countries.

600 watt inverter



Package & Shipping


By sea , by air, and also BY express way.

solar power kits


User Manual OLU.pdf
